Wähle das passende Trinksystem-Modell für Dein Triathlon Fahrrad
Für die optimale Integration des Aero Hydration Systems in Dein Triathlon Fahrrad kannst Du aus 5 Modellen (S1-S5) wählen. Diese unterscheiden sich in der Form der BTA Aero Flasche und sind auf unterschiedliche Cockpit Geometrien und Größen zugeschnitten. Das passende Modell findest Du über unseren Size Guide.
Aero Hydration Bundle S1
Description:
Aerodynamically optimized triathlon hydration system with integrated computer mount for Garmin or Wahoo. Super slim, lightweight design for mounting on

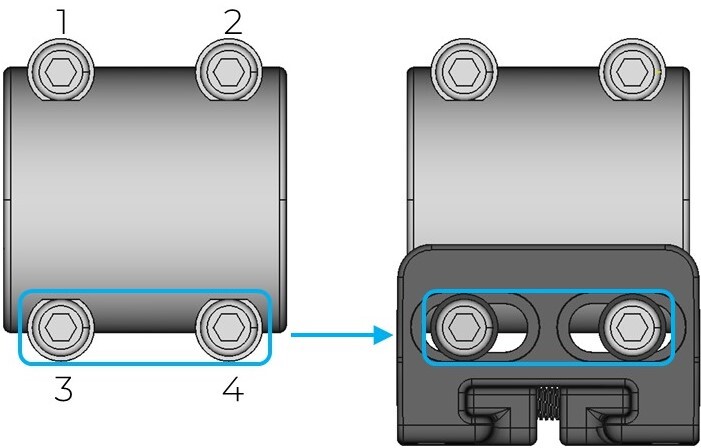

4-bolt stem (frontal view):
The lower 2 of the 4 stem bolts are necessary to attach the bracket. If these are missing (e.g. on integrated cockpits), installation is not possible. You can find an overview of stems with compatible geometry in our Size Guide .
Features:
- volume 800ml / 27oz
- weight 250g + 45g Computer Mount C1
- width 45mm (compatible with tight extensions setup)
- Polypropylene bottle: BPA free & food safe
Versions:
- Bundle includes the Computer Mount C1 (14), which is attached to the front of the Aero Bottle (1).
- Bundle + contains the Computer Mount C1 (14) and also the Computer Mount C2 Solo (17), which can be inserted into the bracket (4) instead of the Aero Bottle (1) on shorter rides.
Computer Mounts C1 and C2 Solo are also compatible with the large models Edge 1030 / 1040. They are not compatible with Edge 1050.
Scope of delivery:
[1] Aero Bottle, [2] Lid, [3] Monofilament Connection, [4] Bracket, [5] 2 x Stem Bolts, [6] 2 x Washers, [7] 2 x Spacers, [8] Bottle Locking Screw, [9] Buffer, [10] Silicon Straw, [11] Sleeve, [12] Silicon Straw Seal, [13] Magnet Velcro Tape, [14] Computer Mount C1, [15] Computer Insert, [16] C1 Fixing Screw, [17] Computer Mount C2 Solo (optional)
Intended use
The product is only intended for mounting on compatible stems. You can find an overview in our Size Guide .
The product must be mounted, used and cleaned strictly in accordance with the instructions in the user manual.
The product is designed for use in triathlon on paved, tarred roads. It is not suitable for use on rough surfaces (e.g., gravel).
The product is for use with isotonic beverages only – do not use with other liquids.
The product is temperature resistant between 0°C and 90°C / 32°F – 194°F. It is not suitable for freezing (e.g., before a competition) or for boiling water.
The Computer Mounts C1 and C2 Solo are only intended for use with bike computers. Do not install lights, cameras or other equipment on these mounts.
User manual with safety information
You can find the user manual with safety information and supporting videos here: User Manual .
