Triathlon Aero Hydration System - Size Guide

For certain bike models we provide a detailed allocation of our models S1 - S5 by frame size and stem length. For all other models refer to 'Other / General' for an overview of compatible stems and fitting templates for model allocation.

Canyon Speedmax CF

The Aero Hydration System is compatible with the original stem (V21) of the Speedmax CF for model years 2017 - 2023. Please note the different allocation for models with disc brakes (disc) and models with rim brakes (previous model). You can find the stem length on the side of the stem, next to the label "V21".

1) Canyon Speedmax CF Disc (with disc brake & V21 stem)

Please note: the system is not compatible with the integrated cockpit of the Speedmax CF Disc 2024

Frame size Stem length Spacer below stem** Model
XS 70mm required S5
S 70mm required S5
S 80mm required S2
M 80mm required S2
L 90mm required S2*
XL 90mm required S2*

* The photos show our model S2 on size S and M bikes with 80mm stem length. Frame sizes L and XL are supplied with 10mm longer stems. The gap between the bottle and frame is correspondingly 10mm larger.


** Spacer below stem refers to the component pictured below.

  • triathlon hydration system s2 from www.stealth-parts.com/en-gb on canyon speedmax cf disc size m

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon drinking system s2 from www.stealth-parts.com/en-gb on canyon speedmax cf disc size s

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon hydration system s5 from www.stealth-parts.com/en-gb on canyon speedmax cf disc size s

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon drinking system s5 from www.stealth-parts.com/en-gb on canyon speedmax cf disc size s

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon hydration system s5 from www.stealth-parts.com/en-gb on canyon speedmax cf disc size xs

    Bildtitel

    Untertitel hier einfügen
    Button

2) Speedmax CF (with rim brakes - from year 2017)

Frame size Stem length Spacer below stem** Model
XS 70mm required S4
S 70mm S4
S 80mm without S4*
S 80mm required S3
M 70mm S4
M 80mm without S3
M 80mm required S1
L 90mm S1*
XL 90mm S1*

* The photos show our model S1 on a size M bike. Frame sizes L and XL are supplied with 10mm longer stems. The gap between the bottle and frame is correspondingly 10mm larger.

  • triathlon hydration system s1 from www.stealth-parts.com/en-gb on canyon speedmax cf size m
    Untertitel hier einfügen
    Button
  • triathlon drinking system s1 from www.stealth-parts.com/en-gb on canyon speedmax cf size m

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon hydration system s3 from www.stealth-parts.com/en-gb on canyon speedmax cf size s

    Bildtitel

    Untertitel hier einfügen
    Button

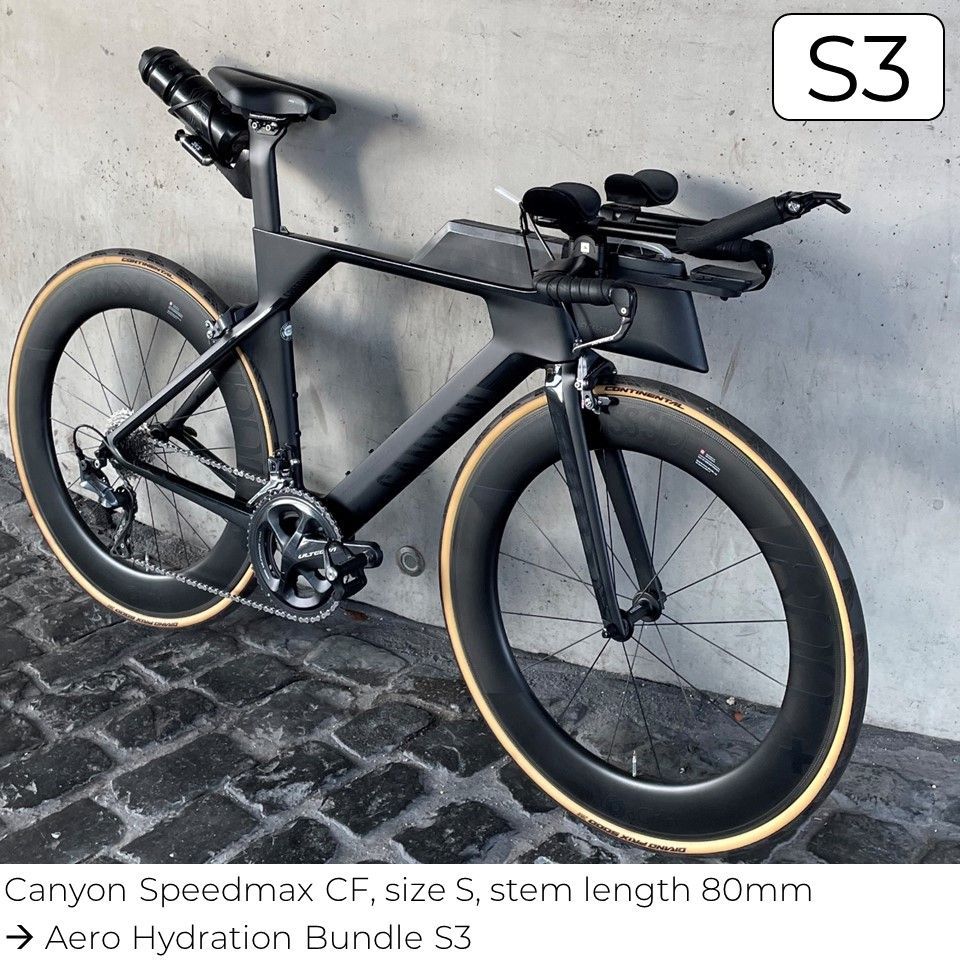

  • triathlon drinking system s3 from www.stealth-parts.com/en-gb on canyon speedmax cf size s

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon hydration system s4 from www.stealth-parts.com/en-gb on canyon speedmax cf size s wmn

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon drinking system s4 from www.stealth-parts.com/en-gb on canyon speedmax cf size xs

    Bildtitel

    Untertitel hier einfügen
    Button

**Spacer below stem

The Spacer below the stem (see picture) is required for some models. If it is removed, the remaining space is not sufficient for some models.

** The Spacer below the stem (see picture) is required for some models. If it is removed, the remaining space is not sufficient for some models.

Cervélo P-Series

The Aero Hydration System is compatible with the original stem of the Cervélo P-Series, supporting both, the latest generation (with ST36 Stem) and the previous generation (with Alloy Stem).


The tables refer to the standard setup (stem length) for the respective frame sizes.

1) Latest generation (from 7/2024)

Frame size Model
48 S4
51 S4
54 S1
56 S1
58 S1*
61 S1*

* For frame sizes 58 and 61, the gap between the bottle and the frame is 10mm larger due to the longer stem.

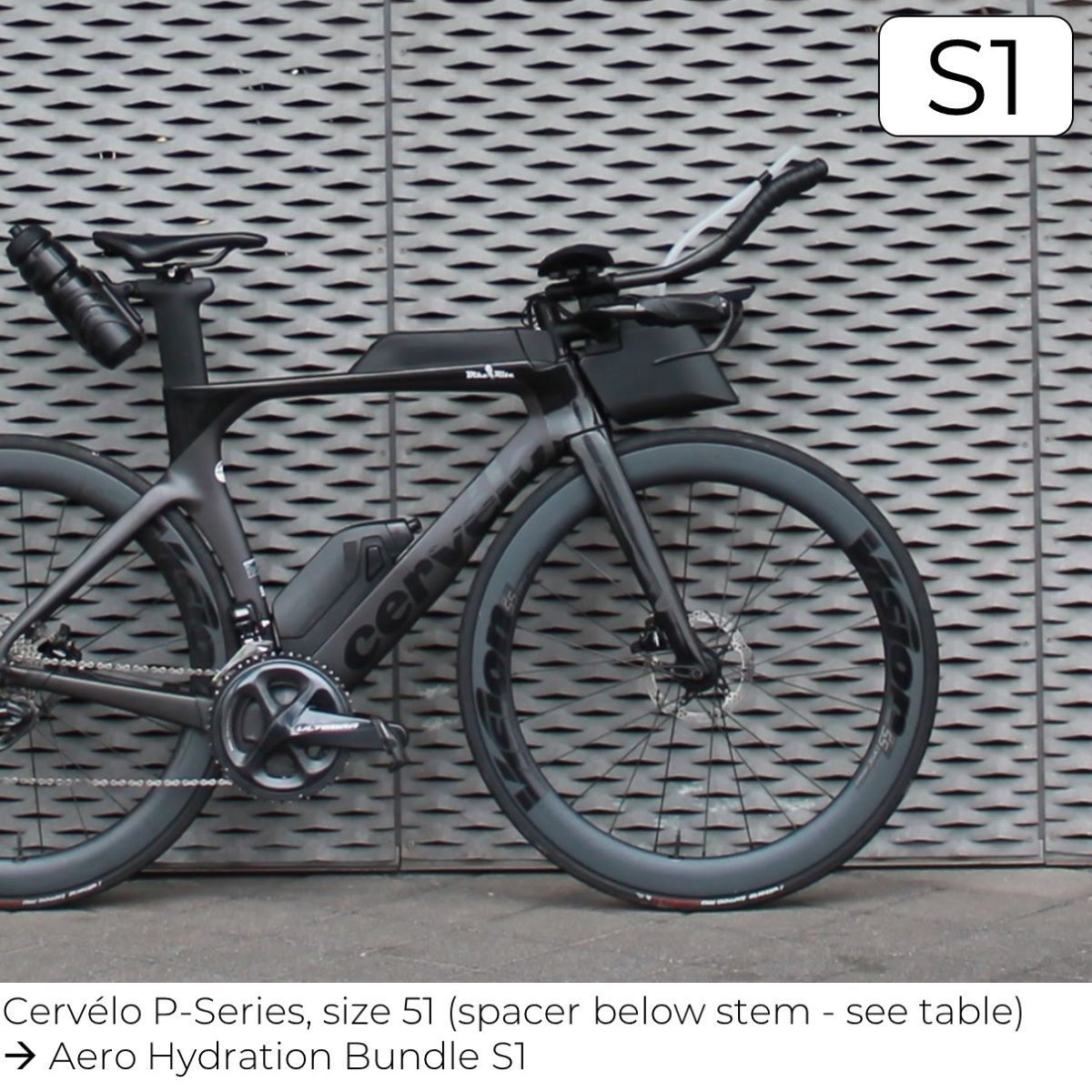

  • triathlon bike hydration system s1 from www.stealth-parts.com/en-gb on cervélo p-series size 51

    Bildtitel

    Untertitel hier einfügen
    Button

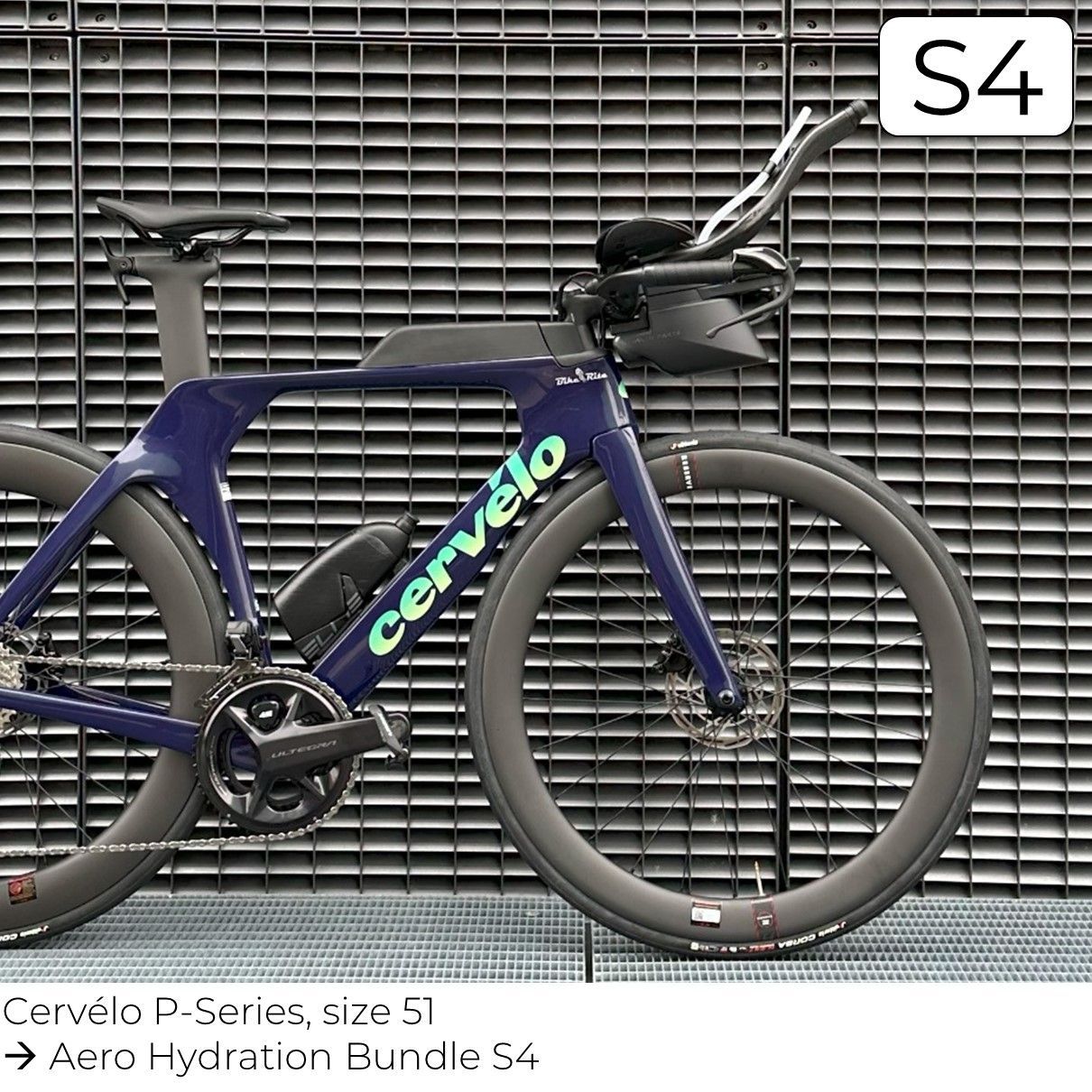

  • triathlon aero hydration system s1 from www.stealth-parts.com/en-gb on cervélo p-series size 51

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon bta hydration system s1 from www.stealth-parts.com/en-gb on cervélo p-series size 51

    Bildtitel

    Untertitel hier einfügen
    Button

2) Previous generation (until 6/2024)

Models with Di2 shifting system: The Aero Hydration System takes up the space below the stem. Consequently, the junction box may require repositioning (e.g. on the stem or inside the bento box).

Frame size Spacer below stem Model
48 S4
51* S4
51* from 15mm S1
54 S1
56 S1
58 S1**
61 S1**

* For frame size 51, model S4 is always compatible. From a spacer height (below the stem) of at least 15mm, model S1 is also compatible.


** The photos show our model S1 on a size 56 bike (yellow). Frame sizes 58 and 61 are supplied with 10mm longer stems. The gap between the bottle and frame is correspondingly 10mm larger.

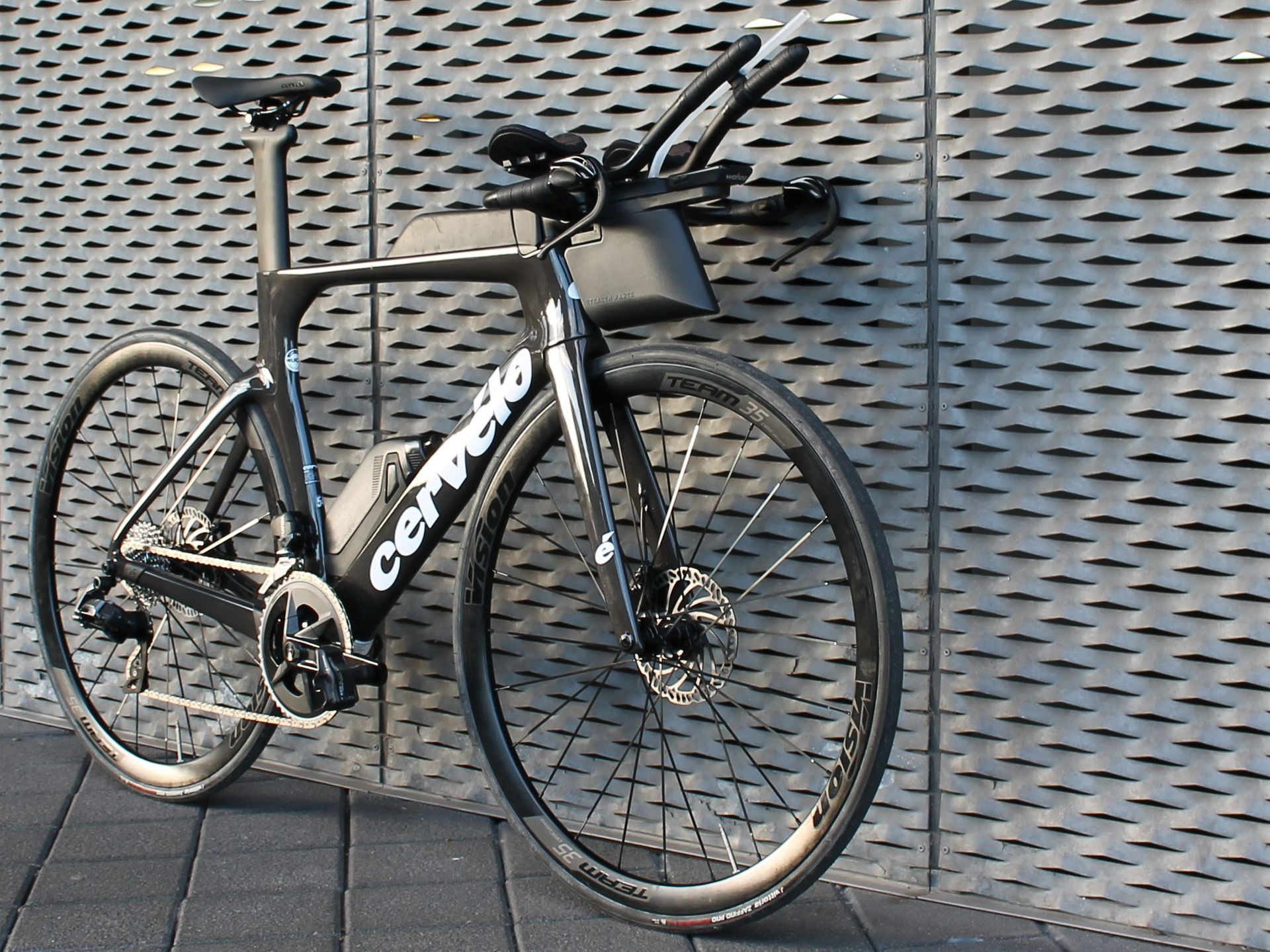

  • triathlon bike hydration system s1 from www.stealth-parts.com/en-gb on cervélo p-series size 54

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon aero hydration system s1 from www.stealth-parts.com/en-gb on cervélo p-series size 54

    Bildtitel

    Untertitel hier einfügen
    Button

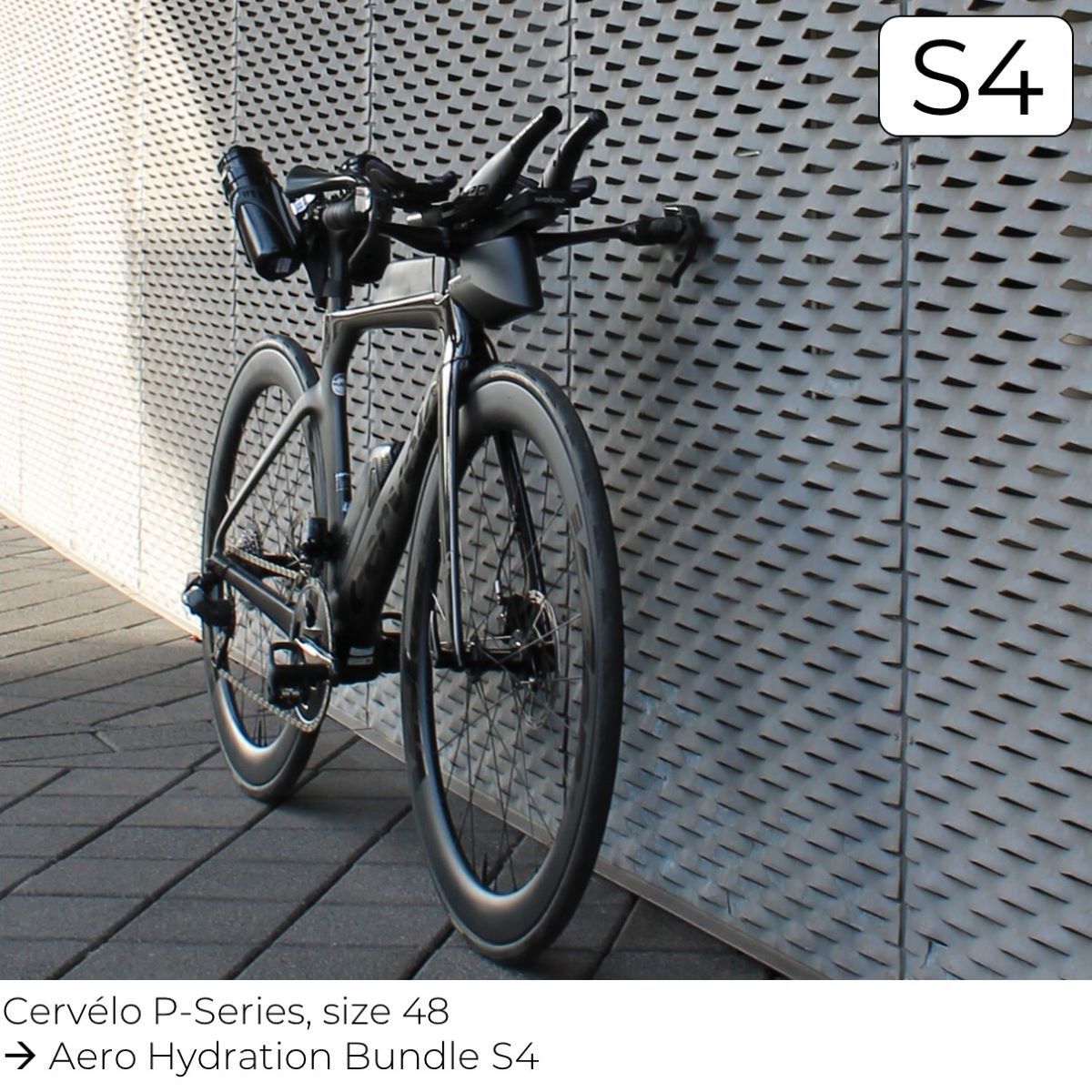

  • triathlon bike hydration system s4 from www.stealth-parts.com/en-gb on cervélo p-series size 48

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon drinking system s4 from www.stealth-parts.com/en-gb on cervélo p-series size 48

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon aero hydration system s4 from www.stealth-parts.com/en-gb on cervélo p-series size 48

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon drinking system s1 from www.stealth-parts.com/en-gb on cervélo p-series size 51

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon aero hydration system s1 from www.stealth-parts.com/en-gb on cervélo p-series size 51

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon drinking system s1 from www.stealth-parts.com/en-gb on cervélo p-series size 56

    Bildtitel

    Untertitel hier einfügen
    Button
  • triathlon aero hydration system s1 from www.stealth-parts.com/en-gb on cervélo p-series size 56

    Bildtitel

    Untertitel hier einfügen
    Button

Other / General

  • Use the list below to check whether your stem is compatible / replace it with a compatible stem
  • Find the optimal model (S1 - S5) by using our fitting templates: Download

Compatible Stems

Below you find an overview of stems with geometry compatible with the bracket of the Aero Hydration System. If you would like to use a different stem, please check the technical requirements.


Note: The Aero Hydration System is not compatible with integrated cockpits.

Stem Inclination in ° Length in mm
Bontrager Elite 31.8 -17 75 / 90 / 105 / 120
Bontrager Elite 31.8 -7 60 / 70 / 80 / 90 /100 / 110 /120
Canyon V21 -17 70 / 80 / 90
Cervélo P-Series Alloy Stem (until 6/2024) -7 70 / 80 / 90
Cervélo P-Series ST36 Stem (from 7/2024) -8 70 / 80 / 90 / 100 / 110 / 120 / 130
Giant Contact SL OD2 -10 70 / 80 / 90 / 100 / 110 /120
Ritchey Comp 4-Axis 44 84D -6 60 / 70 / 80 / 90 / 100 / 110 / 120 / 130
Ritchey Comp 4-Axis 44 73D -17 * 60 / 70 / 80 / 90 / 100 / 110 / 120 / 130
Specialized Comp Multi Stem -12 / -17 ** 70 / 75 / 90 / 100 / 110 / 120 / 130

*  Steerer clamp 1 1/4 - adapter 1 1/4 to 1 1/8 available:

    Ritchey Stem Shim


** including adapter sleeves for adjustment by 2° and 4°

Stem - inclination

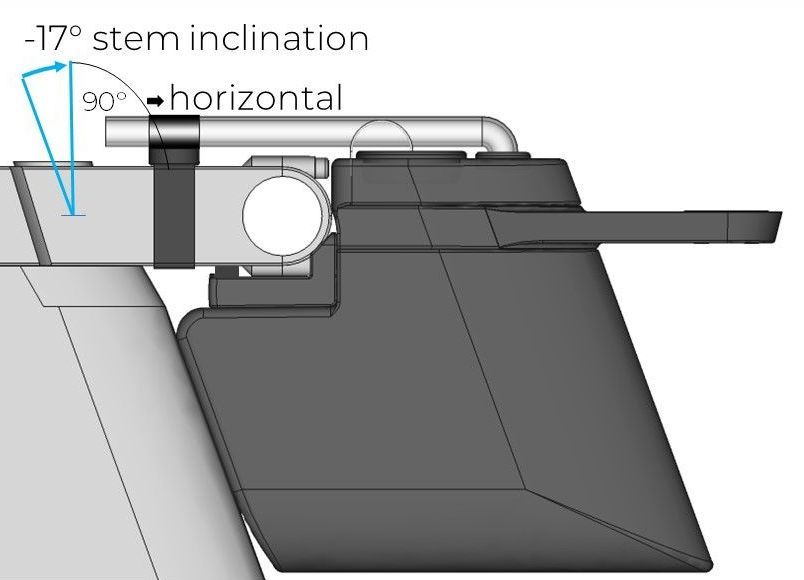

Please note, that the system follows the stem and has the same inclination.


We do not recommend inclinations between 0° and -5°, as the bottle is slightly too steep in this range. Horizontal models (inclination -17°) are ideal. Downward sloping stems with an inclination greater than -17° are not suitable.


Some models are available in various inclinations. In the table we only show the relevant variants from -6° to -17°.

Stem - inclination

Please note, that the system follows the stem and has the same inclination.


We do not recommend inclinations between 0° and -5°, as the bottle is slightly too steep in this range. Horizontal models (inclination -17°) are ideal. Downward sloping stems with an inclination greater than -17° are not suitable.


Some models are available in various inclinations. In the table we only show the relevant variants from -6° to -17°.

Find your model

Our models S1 - S5 are designed for specific geometry and size clusters. The main differences are:


  • The height of the bottle (smaller bottles for smaller bike models, which offer correspondingly less space between stem and front tire).
  • The length of the rear bottle section, which is positioned below the stem (shorter models are suitable for shorter stems).



Please use our templates to determine the model that fits best into your cockpit - see download area below.

Find your model

Our models S1 - S5 are designed for specific geometry and size clusters. The main differences are:


  • The height of the bottle (smaller bottles for smaller bike models, which offer correspondingly less space between stem and front tire).
  • The length of the rear bottle section, which is positioned below the stem (shorter models are suitable for shorter stems).

Please use our templates to determine the model that fits best into your cockpit - see download area below.

Other stems - technical requirements

The exact geometry of the stem is crucial for optimum functionality. If you are using a stem that is very similar to those listed above, you are welcome to contact us. Please check the following technical requirements in advance and send us pictures of your stem from the front and from the side.

  • Stem - shape front plate

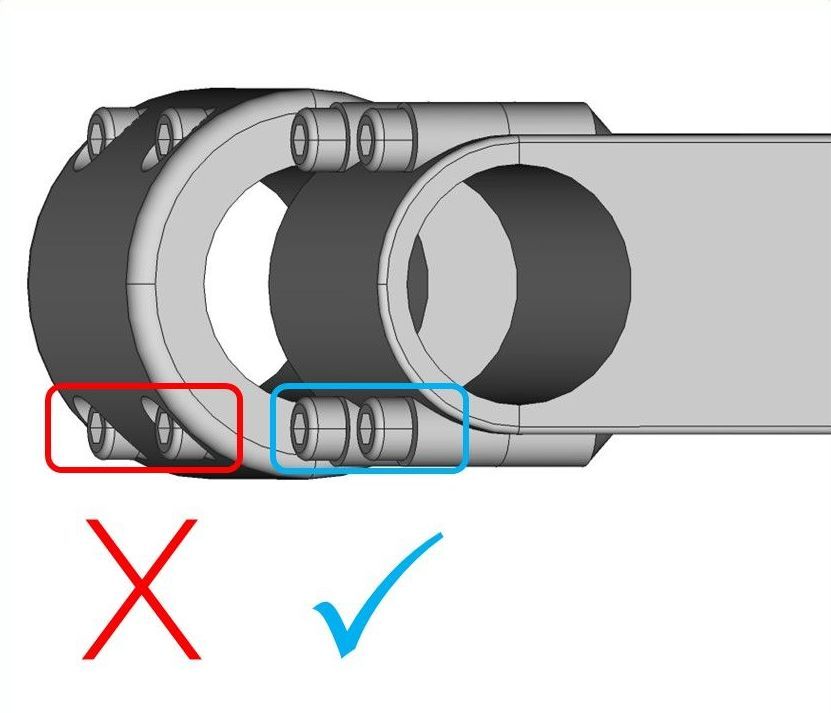

    The bolt heads of the stem bolts must be fully visible.


    The Aero Hydration System is not compatible with stems with deeply recessed bolts. A flush / non-positive assembly is not possible in this case.


    There are a few exceptions, such as the Cervélo P-Series stem, which is compatible due to the special geometry of the front plates although the bolts are recessed.

  • Stem - bolt spacing

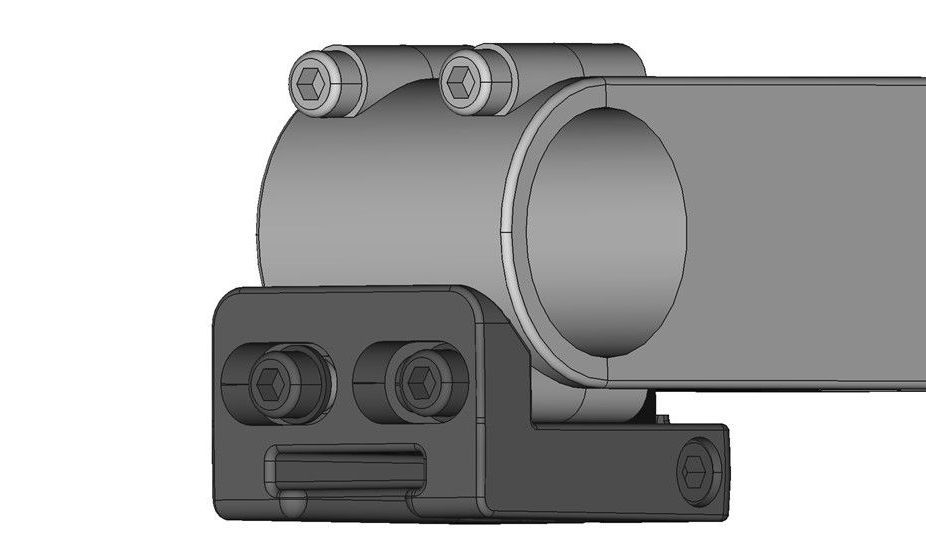

    The bracket is mounted on the lower bolts of your 4-bolt-stem.

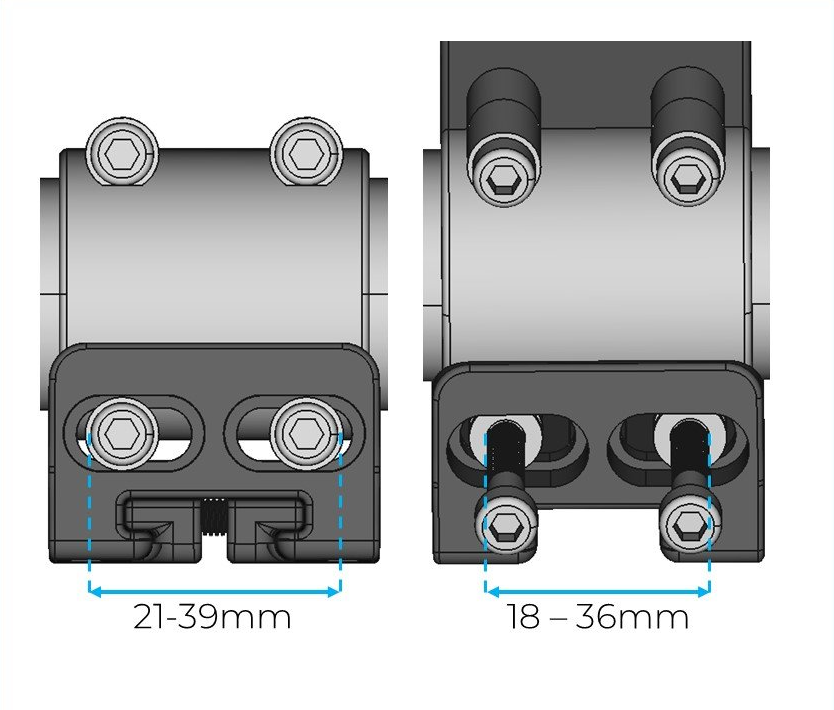

    Please measure the outer distance of the bolts either on the bolt head (21 - 39mm) or on the thread (18 - 36mm).

Downloads

Fitting templates

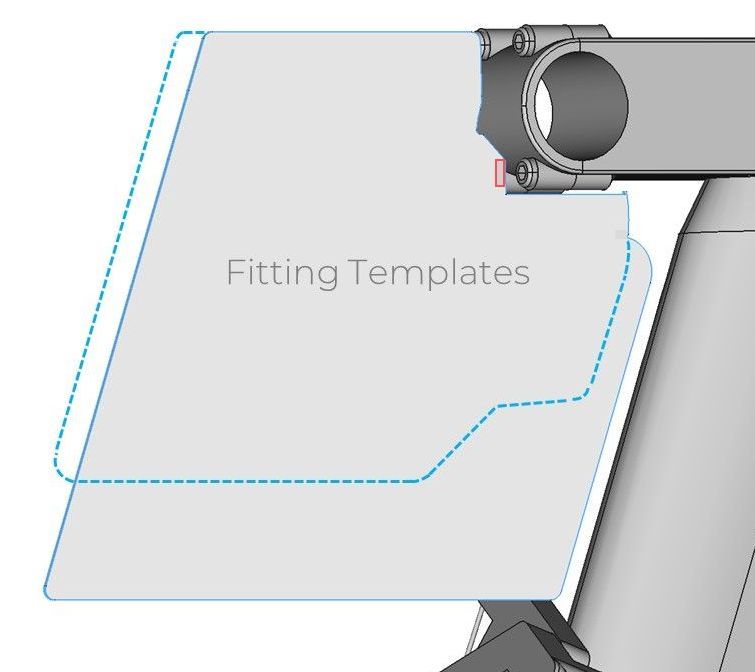

Please print the templates, cut them out and check the fit. Choose your paper format and print at 100% scale.

User Manual

User Manual

Due to a product update, you will find two versions of the assembly and user manual here. Please choose the version that corresponds to your order date.

  • Order date from 20.12.2024

    Please use version A2 of the User Manual if you ordered the Aero Hydration System / Bundle / Bundle + on or after December 20, 2024 (order date!).


    Please read the user manual carefully and follow the steps listed therein exactly.

    Download A2

  • Order date until 19.12.2024

    Please use version A1 of the User Manual if you ordered the Aero Hydration System / Bundle / Bundle + on or before December 19, 2024 (order date!).


    Please read the user manual carefully and follow the steps listed therein exactly.

    Download A1

Fitting Templates

Please print the templates, cut them out and check the fit. Choose your paper format and print at 100% scale.
